Photonic Inverse Design

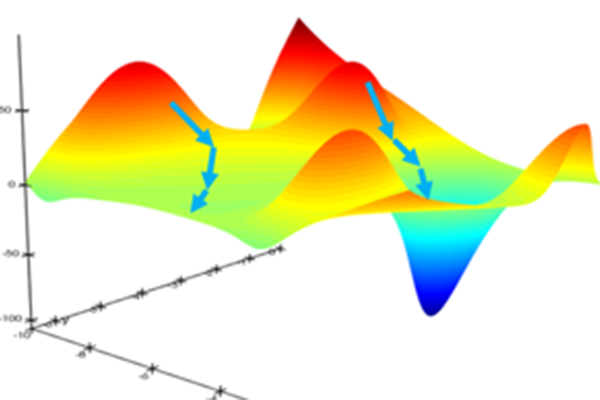

Automatically Discover Optimal Designs

Take advantage of Inverse Design, a new capability made possible via Lumerical’s Automation API:​

  • Automatically discover optimal geometries for a desired target performance​
  • Two variants available: parametric optimization and topology optimization​
  • Discover non-intuitive geometries that optimize performance, minimize area, and improve manufacturability​.

Parametric Optimization

Perform automatic shape-based optimization when the class of the shape is known:​

  • Based on Lumopt, an open-source implementation of the Adjoint Method
  • Available via the Automation API​
  • Compatible with both FDTD and varFDTD​.

Topology Optimization

  • Topological optimization generates optimal geometries without the need to specify a class of shape​
  • Ideal for non-intuitive problems where an initial “starting point” is not available​
  • Can provide further improvements beyond that of parametric optimization​
  • Continuously monitors manufacturability during optimization​

Optimal Designs Faster

  • Measurements of manufactured designs developed using Lumerical’s Inverse Design have been shown to strongly match simulation results.​

Improved Manufacturability​

  • Inverse Design can be configured to meet manufacturing and operating-condition constraints​
  • Simultaneously co-optimize for nominal etching, over-etching, and under-etching for manufacturing tolerance​

Accessible via the Automation API​

  • Written in Python, inverse design can interface with across multiple tools​
  • Take advantage of the rich open-source community available via Python​

Get Started Today with Application Gallery Examples​

Currently-available application-gallery examples make it easy to instantly get started with Inverse Design:​

Get started now with a free 30-day trial.

Evaluate for Free
